The HJ of October 1974 gave the HQ a squared-off front with wraparound indicators, and new rear lamps and quarters on sedans; other bodies kept the HQ rear, and the One Tonner kept the HQ front. Front discs were dropped from the Belmont but standard on every Kingswood. The HX of July 1976 detuned the engines for the ADR27A emission rules and changed little else but the grille and badges, adding a Kingswood panel van; power ventilated front discs are standard.
The HZ of October 1977 brought Radial Tuned Suspension to every model — new springs, bigger dampers and anti-roll bars front and rear — with front discs standard and rear discs on the Monaro GTS and Statesman, optional on the Kingswood SL and Premier. The WB of 1980 to 1985 was commercials and Statesman only, with a new front and rectangular headlamps. All four were assembled in New Zealand, and the Statesman to 1984.
Holden HJ, HX, HZ & WB — specification & changes within the model
- HJ — 1974 to 1976
- New front, wraparound indicators. New sedan rear. Front discs standard on Kingswood, not on Belmont.
- HX — 1976 to 1977
- ADR27A emissions: lower power. Grille and badges. Kingswood panel van. Power front discs standard.

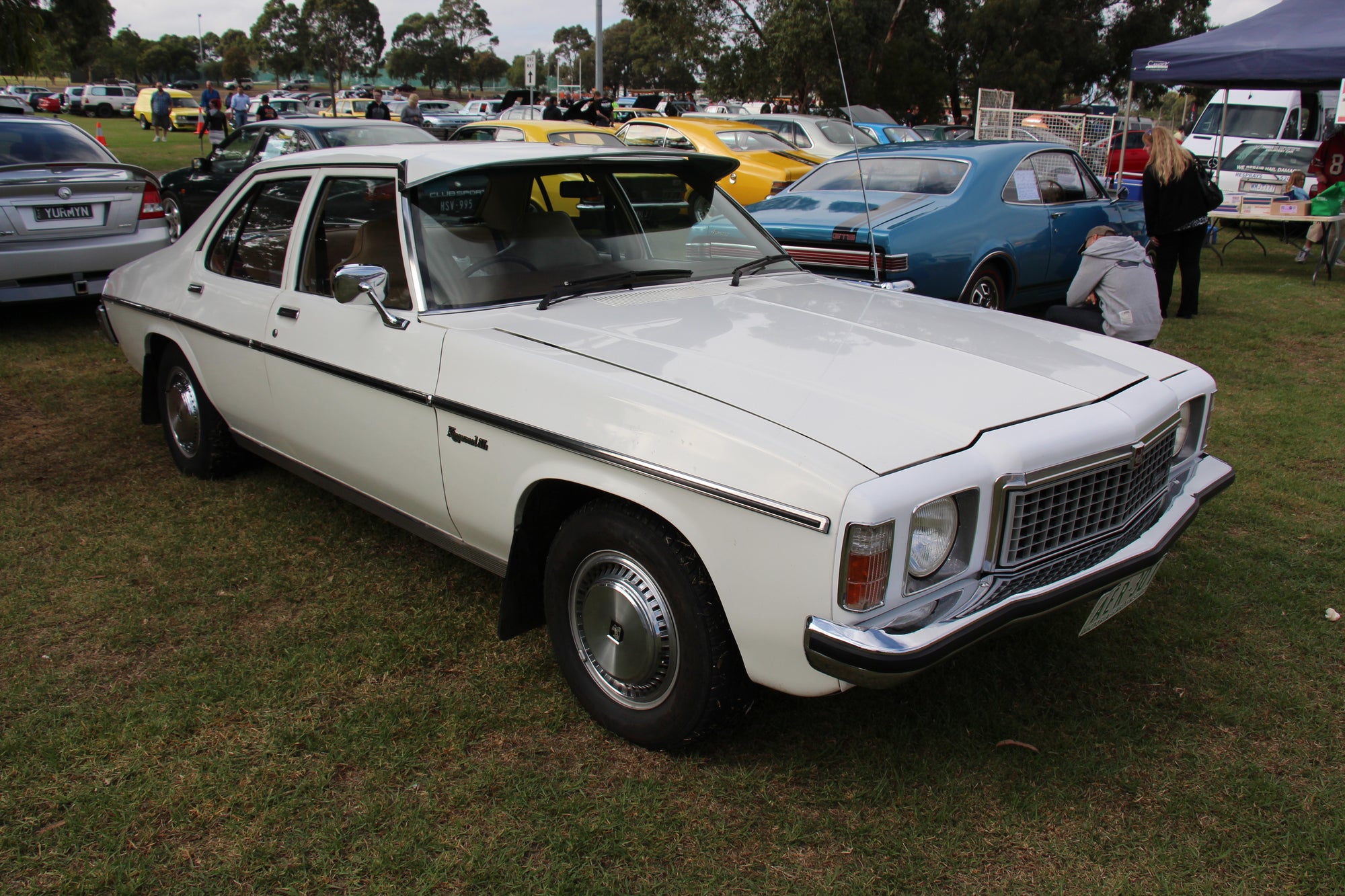

- HZ — 1977 to 1980
-
Radial Tuned Suspension. Front discs all models; rear discs on GTS and Statesman, optional on Kingswood SL and Premier.
- WB — 1980 to 1985
- Utes, vans, One Tonner and Statesman only. Rectangular headlamps. 202 six standard.
- Identification
- One VIN plate format from 1972 on the upper firewall: last letter is the series — Q, J, X, Z, B.
- Built in New Zealand
- HJ, HX, HZ and WB assembled locally; the Statesman to 1984. The Monaro came in fully built.
- Earth polarity
-
We cannot tell you for certain, and we will not guess. We could not find more than one source on the earth polarity for the HJ to WB. Check the car before you order a coil, a regulator or a radio.
